Three Phase Submersible Pumps

Axial flow, cast iron propeller provides high efficiency, high volume pumping at low head. Applications for residential, commercial and industrial wastewater, decorative waterfalls and fountains, raw water supply from lakes / rivers. Available in both single-phase (100AB2.4S) and three-phase (100AB2.4, 100AB2.75 and 150AB41.5) pumps.

Agitator series submersible pump designed for slurry, mud and sand pumping with hard iron adjustable wear parts and bottom side discharge up to 6 in size. Up to 50 ph with three phase 4 pole motors for slower impeller tip speed which prolongs impeller life.

Utilizing 4 pole, 1800 rpm motors and 6 pole, 1200 rpm motors the GSZ Series offers longer wear life on parts due to the slower impeller tip speed. GSZ pumps are the most formidable high volume dewatering pumps offered today.

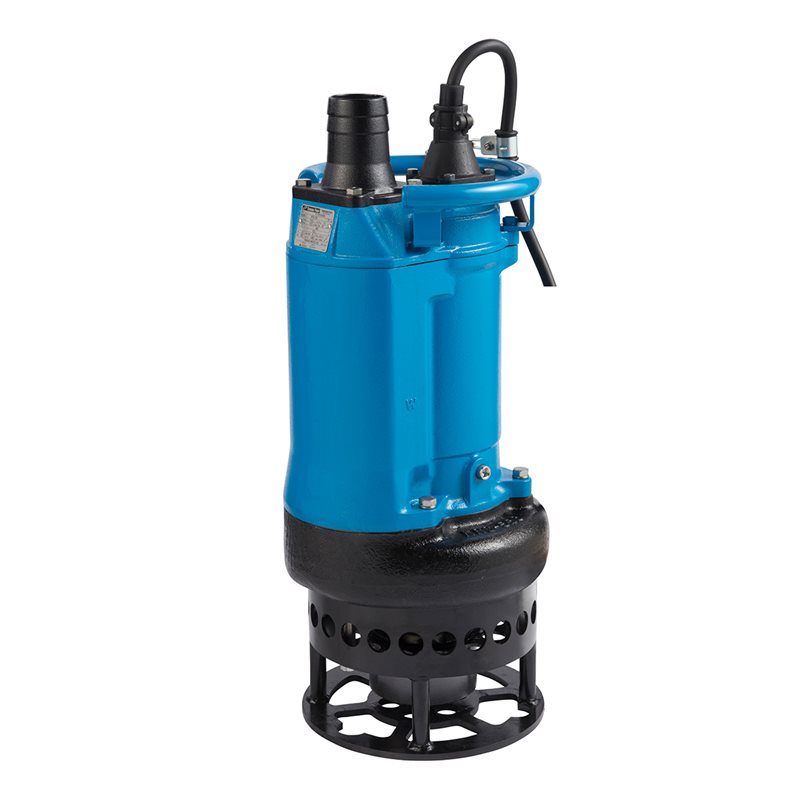

The cast iron construction of our KRS series extends pump life by preventing premature wear and failure from the abrasive materials found in mining, aggregate, and construction applications. Available in a variety of discharge sizes and horsepower, the KRS pumps are engineered to withstand even the most rigorous situations.

Tsurumi Agitator Pump KTD Series is a cast iron made, heavy-duty slurry pump employing the KTZ Series as the base. An agitator is provided to assist smooth suction of the pumping fluid. The side-flow, top-discharge design keeps the motor cooling even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to place in a confined space.

KTV and KTVE pumps are wear resistant and designed for those light to medium-duty applications. Our KTVE series incorporates a level sensor eliminating the need for auto control panels and externally mounted float assemblies.

KTV and KTVE pumps are wear resistant and designed for those light to medium-duty applications. Our KTVE series incorporates a level sensor eliminating the need for auto control panels and externally mounted float assemblies.

Top discharge provides maximum motor cooling while allowing continuous duty operation. Pumps fit into 8 in pipes.

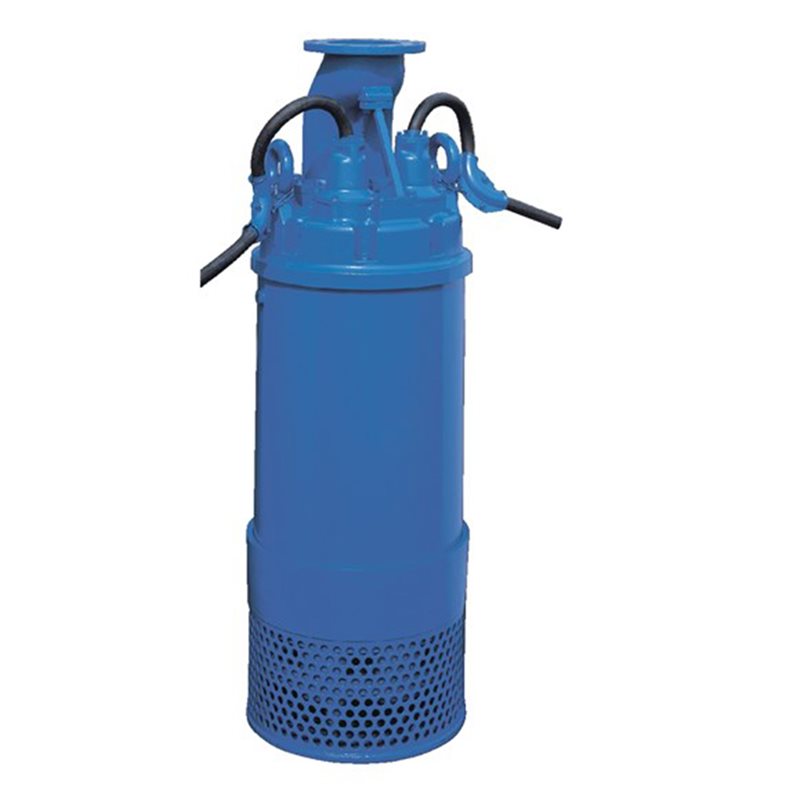

Tsurumi's LH Series handles medium to high flows at higher heads, yet its top discharge flow-through design welcomes low water level operation for extended periods. Complete with a high chromium semi-open impeller and adjustable wear rings, our LH pumps provide you with increased wear resistance whether your application is effluent transfer, construction site drainage, or commercial/industrial dewatering.

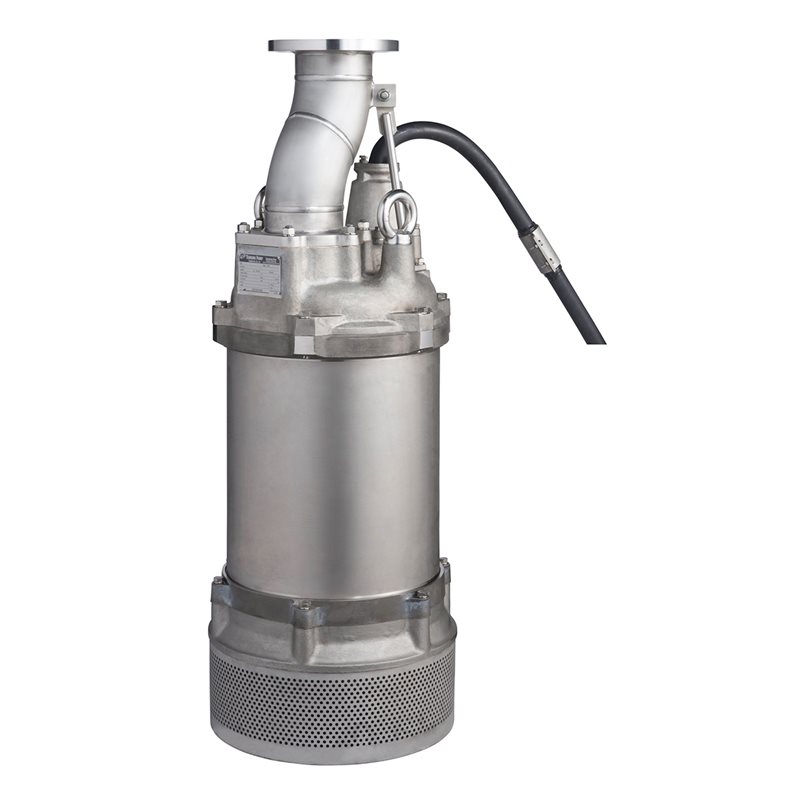

LH / LHW Stainless Steel Series is a submersible stainless steel casting high head, corrosion-resistant pump designed handling aggressive and corrosive liquids. All wetted parts are made of 316 stainless steel, enables it to withstand demanding conditions found in construction and mining applications. LH-14 features single impeller with 316 stainless steel casting / LHW-14 features dual impellers with 316 stainless steel casting.

Tsurumi's LHW series achieves extremely high head capabilities. Our dual staged enclosed impellers are just one of many features found engineered into these durable pumps which can help you solve all your long distance water transfer needs.
